Thunder Accessories

Thunder Scientific offers a full range of accessories to help with your humidity measurement and options to customize our humidity generators. You can order these parts separately, or in addition to the standard configuration. Or you may order them as replacement parts. We also offer spare parts and repair kits for the most commonly needed items.

If you need something you don't see here, please call 1-(800)-872-7728 or fill out the comment box in our RFQ form. Be sure to sign up for our newsletter to learn about new products, accessories, and events.

Accessories for Systems/Models

Thunder provides extra add on accessories for our humidity generators. Match up your model type with the cart and air box to make a complete system. You can also purchase these items separately.

ACS2520 Air Compressor System

The Air Compressor System (ACS2520) is an optional air source for the Model 2500 and 2900 humidity generators.

Product Details

ACS3920 Air Compressor System

The Air Compressor System (ACS3920) is an optional air source for the Model 3920 low humidity generator.

Product Details

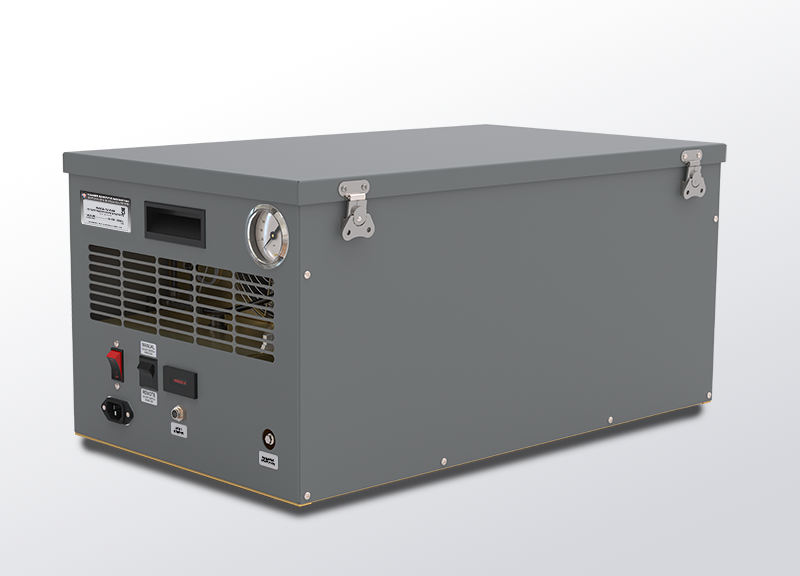

ACS1210 Air Compressor System

The Air Compressor System (ACS1210) is an optional air source for the Model 1200 humidity generator.

Product Details

Model 2500 Mobile Utility Cart

The Mobile Utility Cart is available for both the "R" and "ST" Model 2500 generators and is made to move the generator more easily in your lab environment.

Product Details

Model 2900 Mobile Utility Cart

The Mobile Utility Cart (CART-29) is made to move the Model 2900 generator more easily in your lab environment.

Product Details

4 Port Heated Manifold

The 4 Port Heated Manifold (4PHM) accessory is available for all the systems Thunder sells and with the 4 ports makes it easy to calibrate four temp probes at the same time.

Product Details

Accessory Order Codes Defined

Reading the Accessory codes:

Start with the system designation, which begins with a “250”, that indicates the Model 2500.
The next item in line is the “M” which stands for Manifold.
Followed by the size value, this could be “1.5” which means one point five inches in diameter.
Then a dash is placed in between the two numeric values as a separator.
Next comes the value determination for length and could be “7” for seven inches long.

Order Code would look like this: 250M1.5-7

Note: A good way to determine which length you need is to look at the chamber width, usually as a rule of thumb the “7” will fit in both the “R” and the 2900 size chambers and the “10” will fit in an “ST” chamber.

Option Code Designation Table

Item Code	Item Description
120 =	Model 1200 System
122 =	Model 1220 System
250 =	Model 2500 System
290 =	Model 2900 System
390 =	Model 3900 System
392 =	Model 3920 System
950 =	Model 9500 System
R =	Model 2500 Regular System Size
ST =	Model 2500 Stretch Tall System Size
M =	Manifold
MP =	Multiport Manifold
SM =	Stainless Steel Manifold
AH =	Air Hose
APP =	Access Port Plug
CFF =	Chamber Fluid Funnel
CIS =	Chamber Instrument Shelf
DPP =	Door Port Plug
LDP =	Large Door Port Plug
HPT =	High Pressure Transducer
IC =	Insulation Chamber Foam Insert
PGF =	Polypropylene Glycol Fluid
RFF =	Reservoir Fluid Funnel
EHC =	External Hygrothermograph Calibration Kit
ESK =	External Snorkel Kit
MPD =	Multi Port Door
NWD =	No Window Door
WDA =	Window Door Assembly
ACS =	Air Compressor System
CART =	Mobile Cart Assembly

Accessory Items

Thunder has several different accessories for the each system we sell.

Chamber Fluid Funnel

The chamber fluid funnel is made for both the Model 2500 and 2900 Humidity Generators. You will have to remove the top right-hand panel and just slide it on the chamber fill port until it bottoms out. Once you do this you can check the fluid level with the funnel itself by observing if the fluid, "Polypropylene Glycol" touches the bottom of the funnel.

Specify this accessory code when ordering as well as your Model Number. (CFF)

Get Quote

Chamber Door Foam Plugs

These are used for the Model 1200 Humidity Generator. They are used as extra insulation so that test chamber air does not escape. They are additionally used to insert your test probes and instruments through into the chamber. You can use them as replacement or spare chamber port plugs and you can get them with or without a hole.

Specify these accessory codes when ordering, the “H” designates the one with a hole. (DPP-12) or (DPP-12H)

Get Quote

Chamber Door Foam Plugs

These are used for the Model 2500 Humidity Generator. They are used as extra insulation so the test chamber air does not escape. They are additionally used to insert your test probes and instruments through into the chamber. You can use them as replacement or spare door port plugs and you can get them with or without a hole. You can also get them for the large door ports as well.

Specify these accessory codes when ordering, the “H” designates the one with a hole. (DPP-25) or (DPP-25H) And (LDP-25) or (LDP-25H)

Get Quote

External Hygrothermograph Calibration Kit

The External Hygrothermograph Calibration Kit (EHC) is an accessory which is made for all 2500 Humidity Generator models and provides the flexibility to calibrate even the larger hygrothermographs. The manifold is made of a three inch diameter stainless steel tube with a height of 12" and has Polypropylene connectors with a four foot removable Vinyl air hose.

Specify this accessory code when ordering. (EHC)

Get Quote

Manifolds

Fabricated from hard copper tubing and has Nickel plating which helps with preventing oxidation and comes with ether a 1/4 NPT or 1/8 NPT male thread, which installs into the air input of the test chamber. The manifold helps improved sensor response, and allows the humidity gas flow directly over the humidity sensor.

Just remember to check your chamber size before ordering.

Specify these accessory codes when ordering.(25M1-10), (25M1-7), (25M1.5-10), (25M1.5-7), (25M2.5-10) and (25M2.5-7)

When ordering manifolds for the 2900 use these codes (25M1-7), (25M1.5-7) and (25M2.5-7).

Get Quote

Multiport Manifold

Fabricated from hard copper tubing and has Nickel plating which helps with preventing oxidation and comes with a 1/4 NPT male thread, which installs into the air input of the test chamber. The manifold helps improved sensor response, and allows the humidity gas flow directly over the humidity sensor. The copper tube can be drilled for a specific sensor diameter and spacing.

Just remember to check your chamber size before ordering.

Specify these accessory codes when ordering.
(25MP1.5-10), (25MP1.5-7) and (29MP1.5-7)

Get Quote

Stainless Steel Manifold

Made from a two inch diameter stainless steel tube and comes with ether a 1/4 NPT or 1/8 NPT male thread, which installs into the air input of the test chamber. The manifold helps improved sensor response, and allows the humidity gas flow directly over the humidity sensor.

Just remember to check your chamber size before ordering.

Specify these accessory codes when ordering.
(12SM2-4), (25SM2-4), (25SM2-7), (25SM2-10) and (29SM2-7)

Get Quote

This is the Most frequently ordered item

The Chamber Instrument Shelf is made for both the Model 2500 and 2900 humidity generation systems and allows the user to add more humidity instruments for calibration to possibly double your workload.

Accessory ordering codes:

Note: The ordering codes are shown in parentheses and bold letters. Specify these codes when ordering.
